DBA’s New Brake kit of T3 4000 or 5000 series slotted rotors and Xtreme Performance (XP) brake pads have been designed for drivers seeking high initial bite and friction consistency from low to high temperatures. The XP range are for heavy duty applications, where higher friction levels are required, in order to safely brake under extreme conditions.

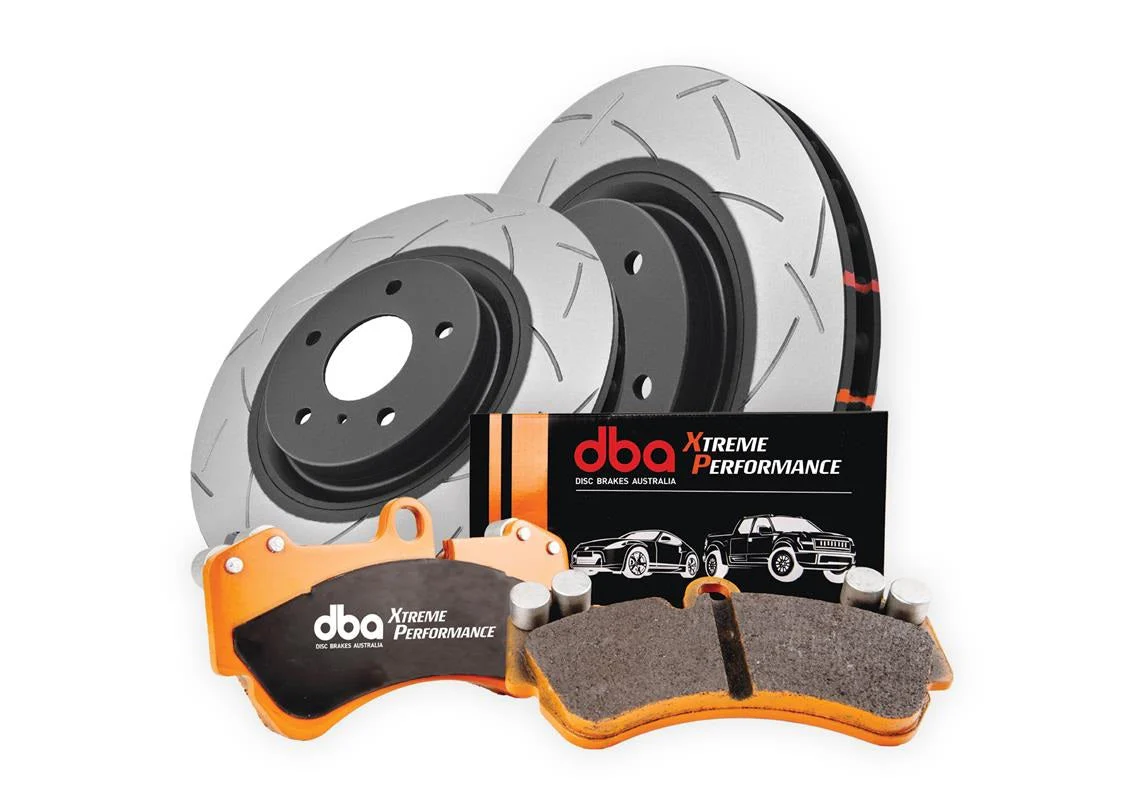

Kit Contains 2 x Front Discs and set of Extreme Performance Front Brake Pads

Specifications:

• Perfectly matching and extensively tested combination of disc and pad
• DBA discs: Kangaroo Paw - 144 diamond and tear drop pillar ventilation system
• DBA discs: T3 slots - additional number of out-gassing exit points allows friction gasses to escape freely and enhance the pad bite
• DBA discs: Thermal Stability Profiling (TSP) and enhance durability of the disc under heavy braking conditions
• DBA pads: Semi-metallic, carbon fibre friction material
• DBA pads: G-G Class Friction (0.45 average mu from low to high temperatures)
• DBA pads: Excellent high temperature performance
• DBA pads: Optimal braking consistency up to 550℃ (1022℉)
• Direct fit, no changes required over stock set up
• One combo - one manufacturer = no warranty issues

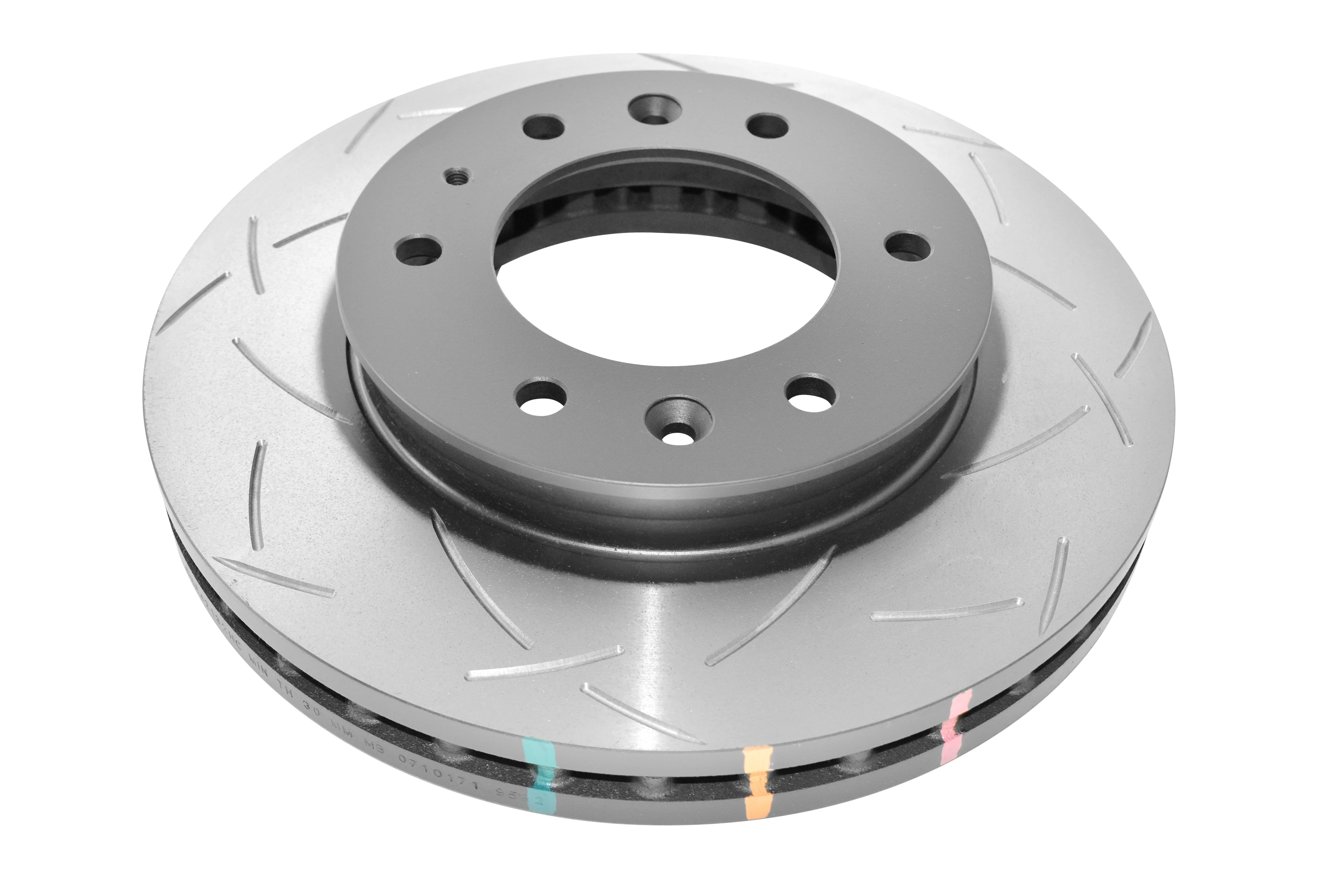

Disc Info:
Diameter [mm]: 332
Disc Vent: Kangaroo Paw
Number of Holes: 6
Inner Diameter [mm]: 98.00
Minimum Thickness [mm]: 30
Thickness [mm]: 32

Kit Contains

2 * DBA42137S Front discs

1 * DB2379XP Front Brake pads



Fitment:
FORD Ranger 2019-2023 2.0 Twin TD 4WD Raptor 213BHP
